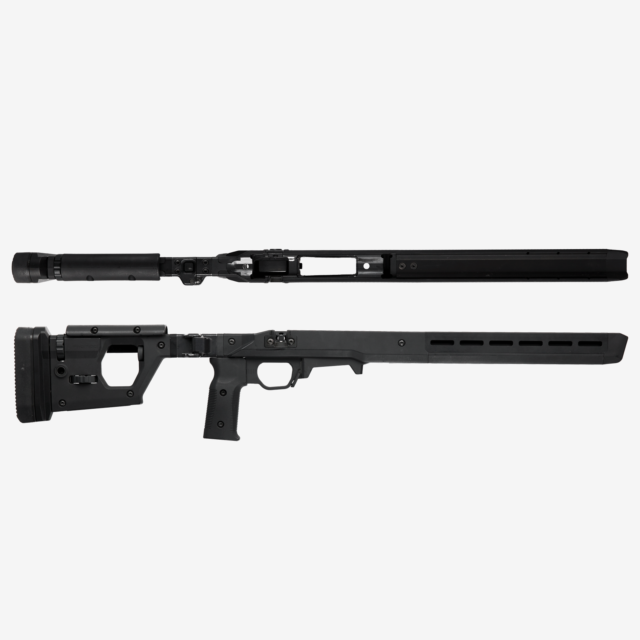

Magpul Pro 700 CHASSIS

Product Details

The Magpul® Pro 700 rifle chassis is an uncompromising, full featured precision rifle chassis for short action Remington® 700 actions and other Remington® 700 footprint actions. The Pro 700 combines innovative engineering, precision machining, Mil-Spec quality finishes, and an extensive list of purposeful design features with complete adjustability to provide demanding end users with the most comprehensive available precision rifle platform solution for true out of the box performance.

Based on a full billet aluminum skeleton and clad in Magpul polymer for environmental comfort, noise mitigation, and ergonomics, the Pro 700 is also fully ambidextrous. Capable of fitting both right and left-handed actions with the simple swap of a bolt retainer plate, and with a reversible cheek riser and reversible hinge on the folding version, “lefties” haven’t been “left out.”

Made in U.S.A.

FEATURES

  • Type III hard anodized machined 6061-T6 billet aluminum V-bedding block, body, adjustment knobs and forend with high strength injection molded polymer body covers
  • Ambidextrous bedding block can be changed by swapping the QD sling swivel plate and bolt cut out plate for left or right hand actions using a 1/8” hex wrench
  • Folding stock with push-button activated durable steel hinge with Melonite® finish is reversible for left or right folding capability with the use of a 5/32” hex wrench. A fixed stock adapter is available for a non-folding stock solution
  • Folding stock is also designed to avoid interference with the bolt handle when folded and is compatible with a large variety of aftermarket bolt knobs and handles
  • Optional inline mount for clip-on night vision and thermal imaging devices
  • Overall LOP adjustment range is 13.25” – 15.125”
  • Butt pad height can be adjusted up 1.33” and down .90” and is adjustable left or right 5 degrees
  • Comb height adjustment has a 1” range with a secondary locking knob to eliminate movement in the cheek riser
  • Cheek riser features a 3-position fore/aft adjustment of +.375”, 0” and -.375” which can also be changed for left or right side usage
  • Injection molded polymer grip with 5 degree forward edge sweep and enlarged palm swell with 7 degree aft edge sweep, with a .75” fore/aft trigger reach adjustment
  • Additional grip option included with a more aggressive forward sweep (8 degree forward / 20 degree aft edge sweep)
  • Durable steel rotation limited QD sling swivel mounts with Melonite® finish fits up to 1.5” push button swivels
  • M-LOK® slots for accessory mounting on the forend (left-6/right-6/bottom-7) and the stock (bottom-2)
  • Integrated AICS pattern magazine well optimized for PMAG® 5 & PMAG® 10 7.62 AC™ magazines as well as most other AICS pattern short action magazines
  • Large trigger guard allows for use with gloves and accepts most factory and aftermarket curved or flat triggers
  • Low-profile, anti-snag ambidextrous magazine release is made of Melonite® treated steel for wear and corrosion resistance
  • Ambidextrous thumb shelf for firing hand thumb placement
  • Two ¼-28×1/2” Socket Head Cap Screws are included for use as action screws

(MAGPUL PRO NIGHT VISION MOUNT NOT INCLUDED, MUST PURCHASE SEPARATELY)


Error! Special characters like [, ], <, > are not supported in the product name.






ACCESSORIES:

Magpul Pro NVM – Night Vision Mount

BACK ORDER OK













Ω

Specs

SPECIFICATIONS*

  • Weight –  5.4 lbs
  • Height at Butt Plate – 5.2”
  • Max width – 1.86”
  • Length – 32.7” – 34.6” (23.5” when folded)

* Specifications based on factory configuration.

Related Info

Click here for assembly / disassembly instructions.

M-LOK Technical Resources:

WARNING: Observe safe firearm handling practices at all times. Failure to do so may result in serious bodily injury or death. Magpul Industries shall not be responsible for injury, death, or property damage resulting from faulty installation, misuse, illegal use, or modification of this product.

ITAR
International Traffic in Arms Regulations Controlled Product

EXPORT NOTICE: This is an item controlled for export by the International Traffic in Arms Regulations (ITAR). These controls take the form of export regulations and license requirements. As part of the express consideration provided for receipt of Magpul’s goods, technical data and/or services, you, our customer, acknowledge that the export, re-export or other transfer, directly or indirectly, of the goods, technical data and/or services provided by Magpul in violation of U.S. law is prohibited. Customers acquiring ITAR goods, technical data and/or services from Magpul shall be responsible for obtaining any necessary U.S. or other government authorization required to ensure compliance with applicable export laws.
